The Global Standard for the Safe Transport and Storage of Liquids

Measurements:

External dimensions (LWH):

6058 x 2438 x 2591 mm

Internal dimensions (LWH):

Niet van toepassing

Weights:

Tare weight:

3500 - 3800 kg

Payload:

Gross weight:

36000 kg

Further information:

Volume:

17500 - 26000 liter

Lockbox:

Stainless Steel 316L / 1.4402

Floortype:

4.0 bar

Certification:

CSC / ISO / UIC / Testcertification

Condition:

New / Used

Insulation:

Yes

Heating/Refrigeration:

Optional

Description:

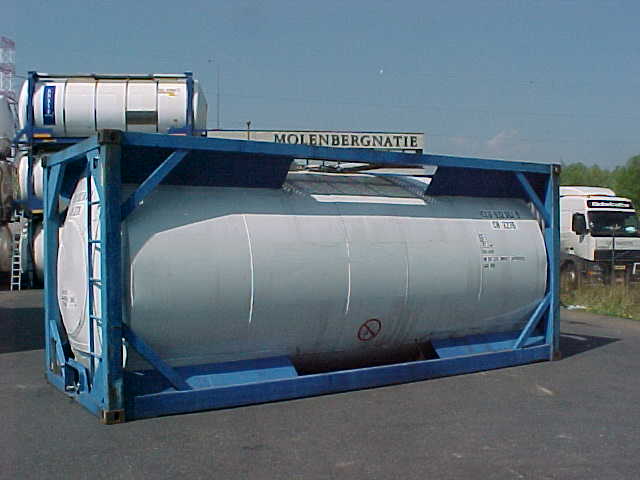

The 20ft T11 ISO tank container is the most versatile and reliable solution for the transport and storage of liquid bulk goods. Whether for non-hazardous chemicals, oils or hazardous substances (ADR/IMO liquids), the T11 tank container meets the most stringent international safety and environmental requirements. Housed in a standardised 20ft ISO steel frame, this tank can be transported effortlessly by road, rail and water.

The tank is manufactured from high-grade stainless steel (316L) and designed for a maximum working pressure of 4.0 bar. To maintain your cargo at the desired viscosity and temperature, the tank is fitted with effective insulation (glass wool/polyurethane) all round and an integrated steam heating system (steam heating coils). The bottom discharge is fitted with a multiple safety system (triple shut-off valves) to completely prevent any leakage during storage or unloading.

Advantages:

  • Maximum Versatility: Suitable for a very wide range of hazardous (ADR/IMO) and non-hazardous liquids.
  • High-grade 316L stainless steel: Excellent corrosion and chemical resistance for maximum product purity.
  • Integrated Heating & Insulation: Fitted with steam heating channels and thick insulation for temperature retention and controlled heating.
  • Triple Shut-off Safety System: Bottom discharge fitted with a bottom valve, a secondary shut-off valve and an end cap for maximum safety.
  • Fully Certified: Fitted with a valid periodic inspection certificate (2.5-year or 5-year test) and a CSC certificate for global intermodal transport.

Pictures:
