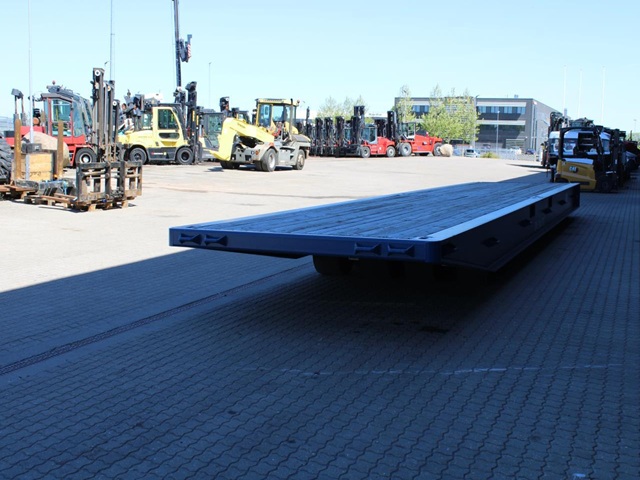

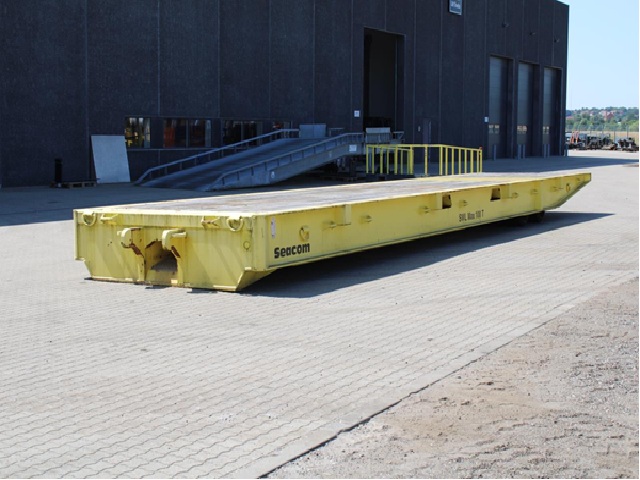

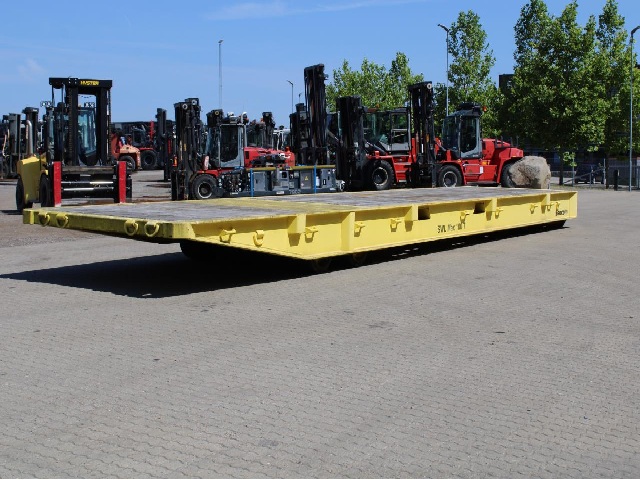

The 40ft Heavy-Duty Roll Trailer is a versatile, high-performance transport solution designed for the efficient handling of large-scale cargo flows and heavy industrial loads. With a platform length of approximately 12.35 metres, this vehicle provides the capacity to transport a standard 1 x 40ft ISO container, two 20ft containers, or long out-of-gauge project cargo. Depending on the chosen configuration, the payload capacity ranges between 40 and 80 tonnes.

The frame is constructed from durable S355/Q345 rolled steel with reinforced main girders, guaranteeing high bending stiffness under heavy loads. The deck is finished as standard with robust hardwood or pressure-treated pine, but can optionally be equipped with a steel checker plate or an open skeletal frame for container handling. The oscillating running gear with solid rubber tyres distributes axle loads evenly across the road surface, ensuring a stable and safe ride on paved terminals, vessel decks, and industrial sites.

• Double capacity and flexibility: Suitable for loading 1 x 40ft container, 2 x 20ft containers, or long project cargo such as steel beams and pipes.
• High efficiency in RoRo and terminal transport: Fast movement and transfer of cargo without requiring quay cranes.

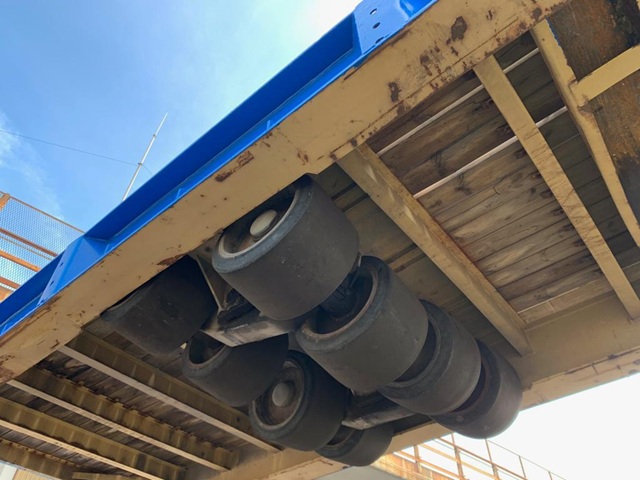

• Excellent weight distribution: The multi-oscillating axle system (rocker arms) with solid tyres limits point loading and protects both the trailer and the deck surface.

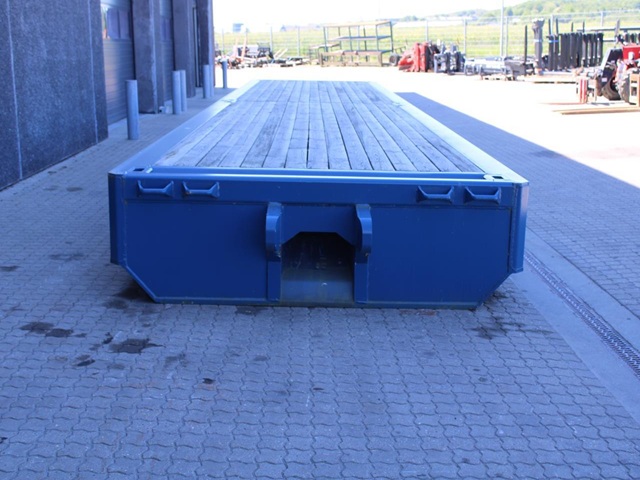

• Fast and safe coupling: The integrated front tunnel ensures a seamless and secure connection with the gooseneck of a terminal tractor (tugmaster).
• Low maintenance costs: Manufactured from wear-resistant materials and solid rubber tyres, eliminating punctures and keeping downtime to a minimum.
• Secure cargo lashing: Fitted as standard with integrated twistlock pockets for ISO containers and robust D-rings/lashing points for securing straps.
